Tensioning Pump
TheGAW Tensioning Pumps deliver exceptional performance with pressure capabilities up to 2000 bar. Available in both air-driven and electric variants, these pumps feature a two-stage design that ensures rapid system filling and precise pressure control. The compact, robust construction with an integrated cooling system enables continuous operation in demanding environments.
Specifications
| MODEL | ATEP-20E | ATEP-20P |
|---|---|---|
| DRIVE MECHANISM | Electric | Pneumatic |
| MAX OUTPUT PRESSURE | 2000 Bar | 2000 Bar |
| TANK CAPACITY | 5.5L | 6L |
| FLOW(LOW-HIGH) | 5.5-0.45L/min | 5.5-0.45L/min |
| POWER | 1.1KW | 3KW |
| AIR IN | - | 4 - 8 Bar |
| POWER SOURCE | 220V/115V/250V | - |
| OUTPUT PORT | 2x1/4" BSP | 2x1/4" BSP |

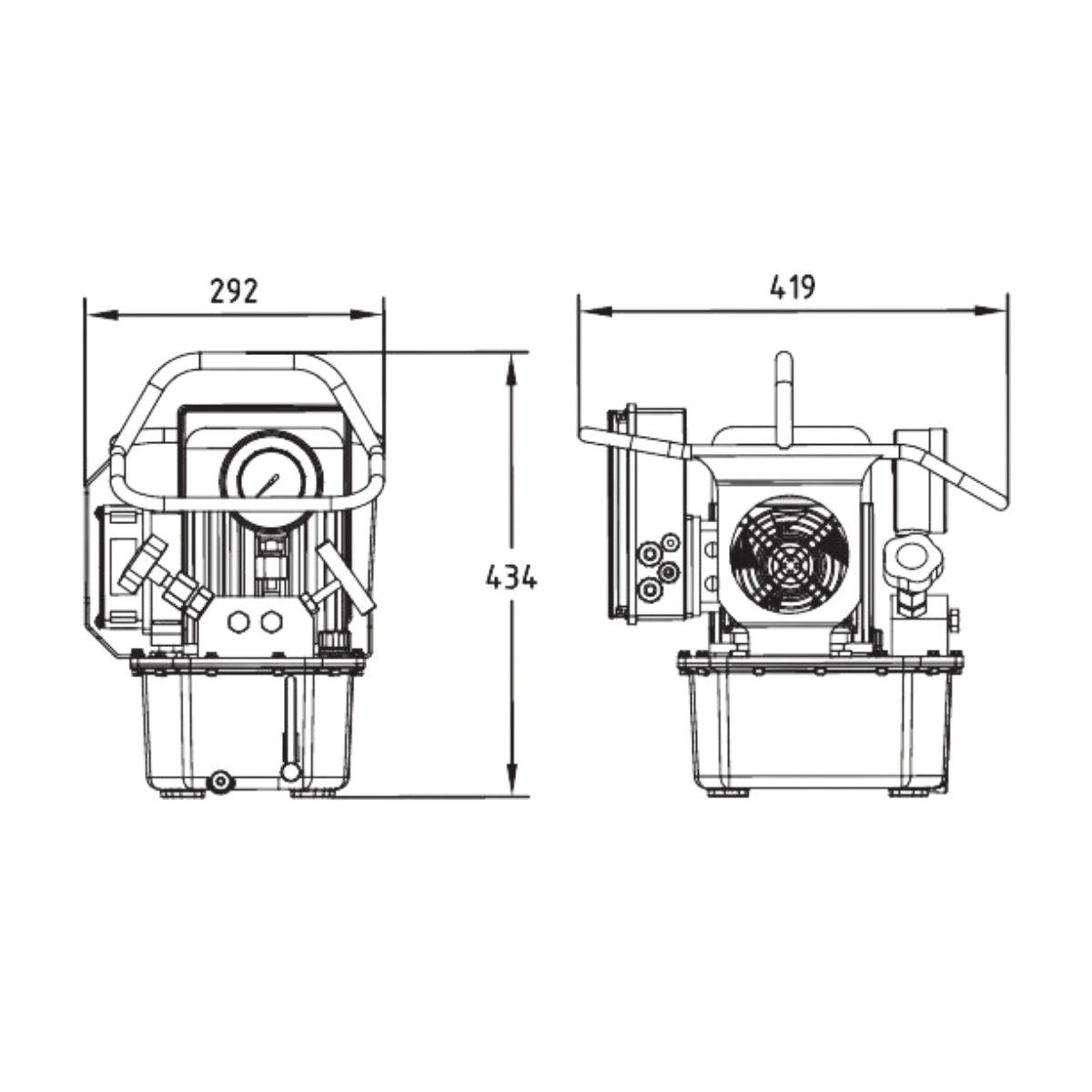

| DIMENSIONS(mm) | 419x292x434 | 419x267x434 |
| WEIGHT(Kgs) | 28 | 26 |
Features
- Features an embedded RFID chip for simplified tracking of service.
- Single-acting, high-performance tensioner pump.
- Accurately adjust output pressure in a range of 10,000~43,500 psi.
- Easy to be connected with quick-releasing couplings.
- Convenient to carry with a compact design.
- Pressure up to 10,000Psi / 700 bar, based on industrial applications.
- Compact automatic three-stage flow, can start under high pressure.
- The high-efficiency cooling system makes the pump suitable in extreme environments.
Notification
- Each unit comes with an FRL and a remote to operate the pump.
- Additional Acessories: Pressure Gauge, Quick Couplers, High Pressure Hydraulic Hoses, FRL.
- Standard Cert Package including Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with the machine.
- Usage of TheGAW Hydraulic Tensioning Pumps will provide greater efficiency on the torque tools.
Warning
SAFETY NOTICE
Using TheGAW™ Tensioning tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
