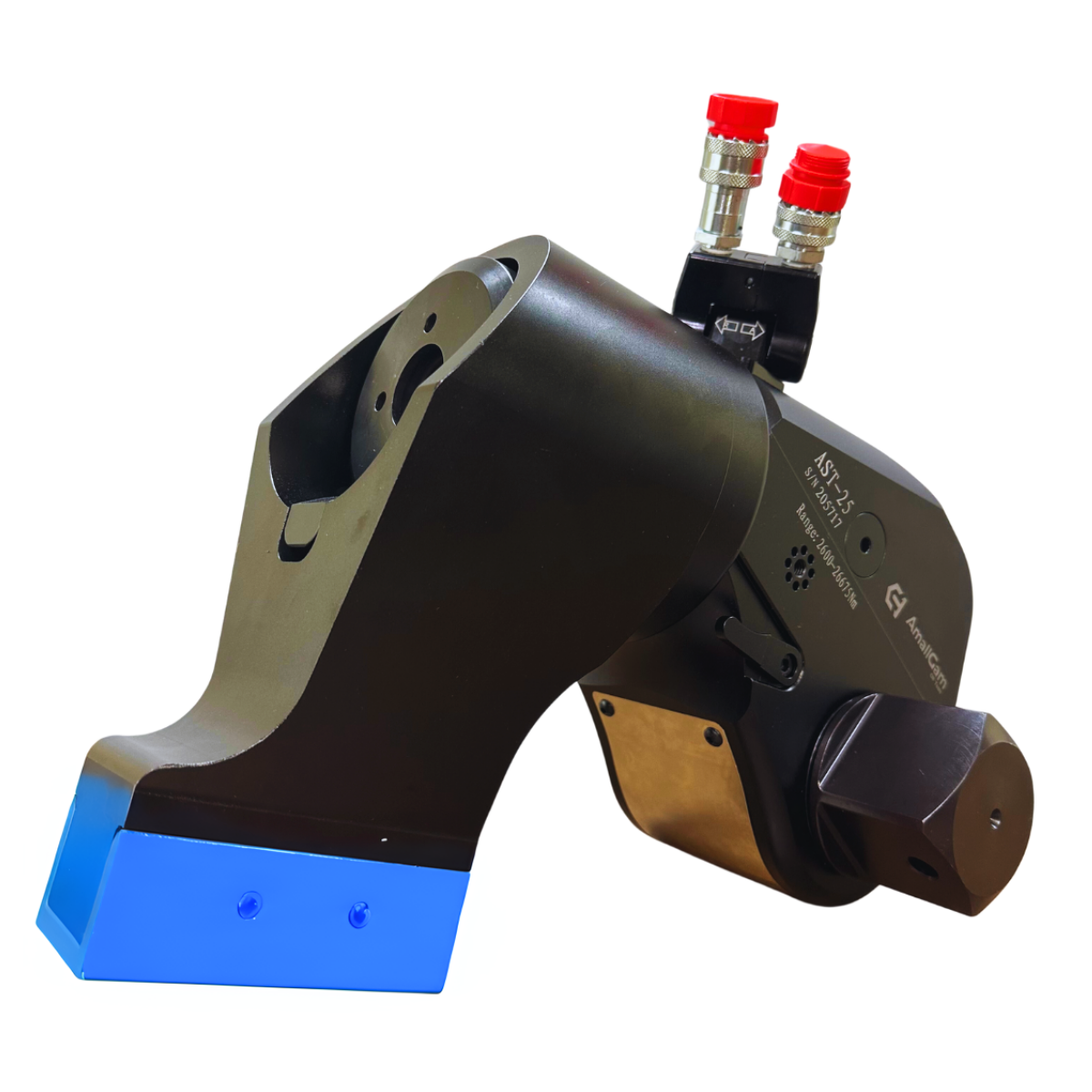

Square Drive Torque Wrench
TheGAW Square Drive Hydraulic Torque Wrenches boast a compact, high-strength uni-body construction, ensuring durability and easy access in confined spaces. These tools deliver precise torque values for uniform bolt tightening, made from high-strength, corrosion-resistant materials. Designed for longevity, they ensure safety and optimal performance even in the most demanding environments.
Specifications
| MODEL | AST07 | AST07X | AST01 | AST15 | AST15X | AST15Z | AST25 | AST25X | AST25Y | AST25Z |
|---|---|---|---|---|---|---|---|---|---|---|
| SQUARE DRIVE | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
| MIN.TORQUE(Nm) | 112 | 182 | 450 | 750 | 1075 | 1550 | 2660 | 3473 | 4865 | 7200 |
| MAX.TORQUE(Nm) | 1124 | 1838 | 4515 | 7528 | 10780 | 15515 | 26664 | 34730 | 48668 | 72010 |
| MIN.TORQUE(Ft.Lbs) | 82 | 134 | 331 | 553 | 793 | 1143 | 1961 | 2561 | 3588 | 5310 |
| MAX.TORQUE(Ft.Lbs) | 829 | 1355 | 3330 | 5552 | 7950 | 11443 | 19666 | 25615 | 35895 | 53104 |
| BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 42-90 | 48-100 | 64-120 | 72-125 |
| WEIGHT(Kgs) | 1.8 | 2.5 | 5 | 8 | 11 | 15 | 26.5 | 35 | 50 | 65 |
Features
- Embedded with an RFID chip for seamless tracking, inventory management, and service history monitoring.
- Compact design with the raw material of advanced aluminium-titanium alloy, which intensifies the strength and toughness comprehensively.
- The 360*185-degree swivel is free to operate with no space limitation.
- The new locking coupler ensures the oil keeps free access.
- Laser with the pressure-torque table enables convenient operation.
- The drive operates with a highly intense socket and is suitable for all ranges of bolts.
- The 360-degree adjustable reaction arm allows placing in any support point.
Notification
- Each unit comes in a carry case with identification tags on the case.

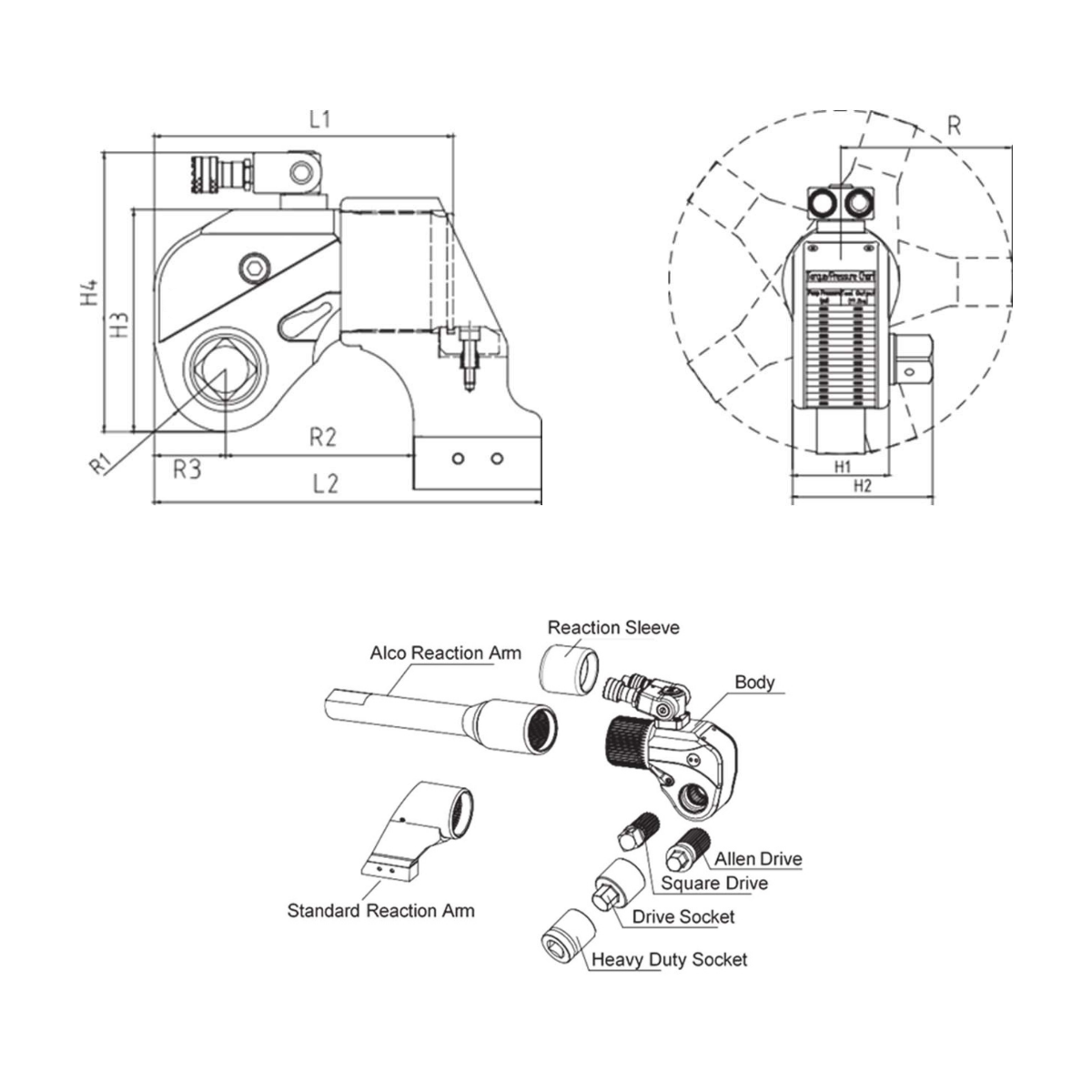

- Additional Accessories: Drive Socket, Impact Socket, Extended Reaction Arm, Reaction Sleeve, Quick Couplers, Hydraulic Hoses.
- The Standard Cert package including a Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with the machine.
- Usage of TheGAW Hydraulic Torquing Pumps will provide greater efficiency on the torque tools.
Warning
SAFETY NOTICE
Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
