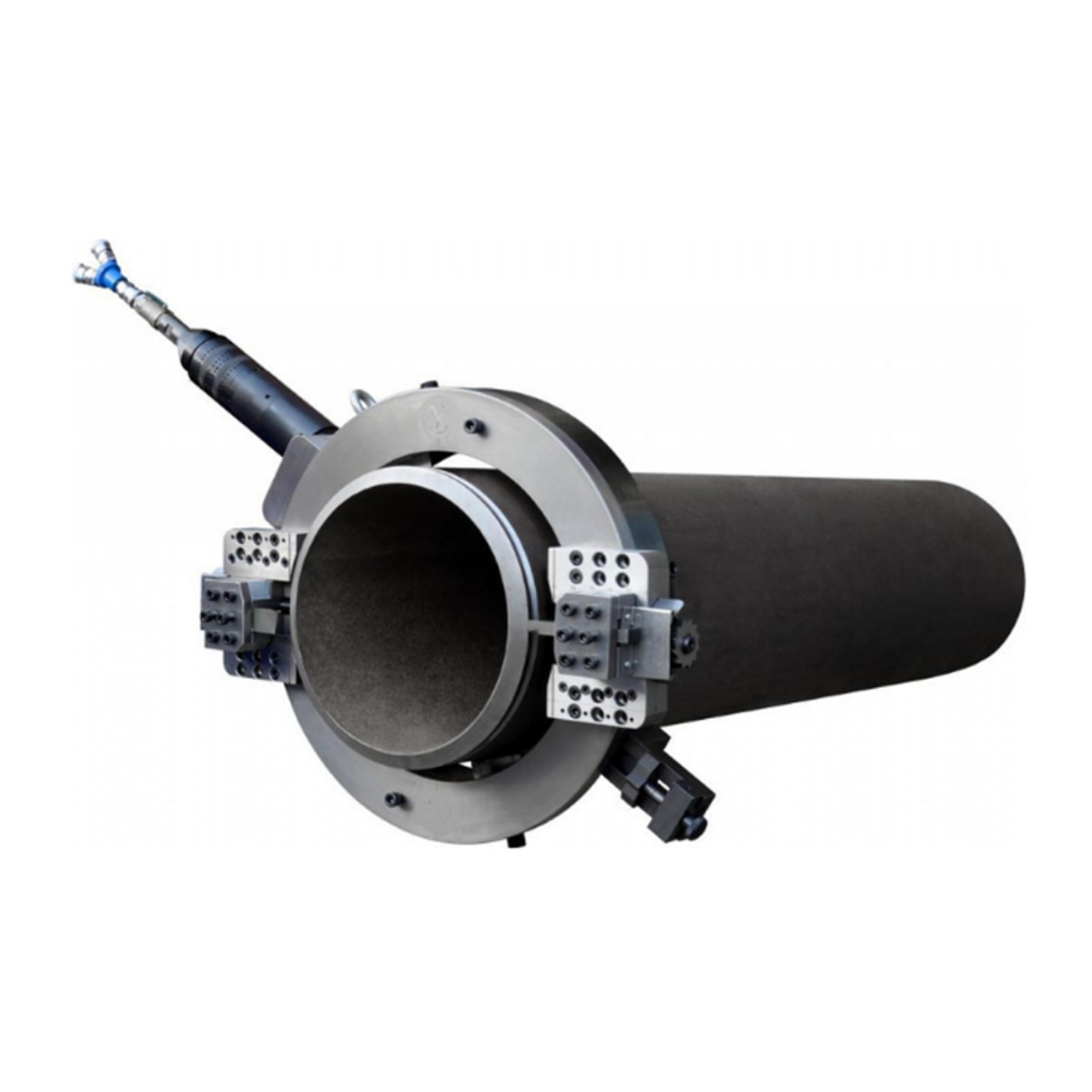

Split Frame Cold Cutting Machine
TheGAW Cold Cutting Solution: Precision, Safety, and Efficiency without the Heat. Achieve flawless cuts on a variety of materials with no sparks, fumes, or thermal distortion. Perfect for sensitive environments and projects that demand the highest level of accuracy. Revolutionize your cutting process with our RFID-enabled cold cutting technology—where precision meets performance.
Specifications
| MODEL | WORKING RANGE O.D | WALL THICKNESS | ROTATION SPEED | WEIGHT (Kgs) | ||
|---|---|---|---|---|---|---|
| IMPERIAL | METRIC | STANDARD | HEAVY DUTY | |||
| ACCM-6 | 2"-6" | 50-168 | ≤30MM | ≤50 | 22RPM | 41.5 |
| ACCM-8 | 3"-8" | 80-230 | ≤30MM | ≤50 | 16RPM | 44.5 |
| ACCM-12 | 6"-12" | 168-325 | ≤30MM | ≤110 | 15RPM | 53 |
| ACCM-14 | 8"-14" | 219-377 | ≤30MM | ≤110 | 14RPM | 56 |
| ACCM-18 | 12"-18" | 300-457 | ≤30MM | ≤110 | 13RPM | 60 |
| ACCM-24 | 18"-24" | 457-610 | ≤30MM | ≤110 | 12RPM | 85 |
| ACCM-26 | 20"-26" | 508-660 | ≤30MM | ≤110 | 12RPM | 96 |
| ACCM-32 | 26"-32" | 660-830 | ≤30MM | ≤110 | 11RPM | 120.5 |
| ACCM-36 | 30"-36" | 762-914 | ≤30MM | ≤110 | 11RPM | 144.5 |
| ACCM-42 | 36"-42" | 914-1066 | ≤30MM | ≤110 | 10RPM | 197.5 |
| ACCM-48 | 42"-48" | 1066-1230 | ≤30MM | ≤110 | 10RPM | 236 |
| ACCM-56 | 48"-56" | 1219-1430 | ≤30MM | ≤110 | 9RPM | 290 |
| ACCM-64 | 56"-64" | 1422-1630 | ≤30MM | ≤110 | 8RPM | 310 |
| ACCM-72 | 64"-72" | 1630-1830 | ≤30MM | ≤110 | 7RPM | 329 |

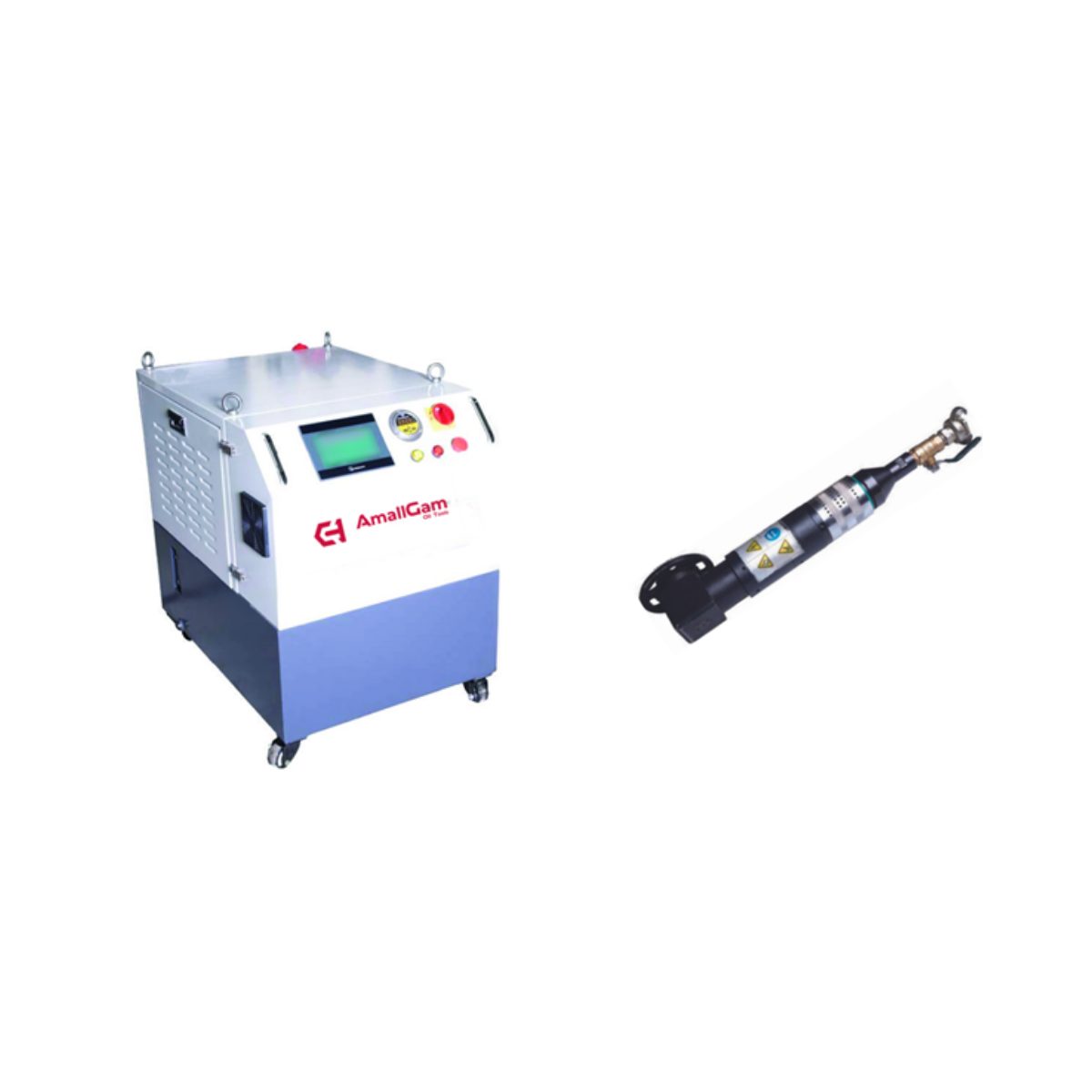

Powerpacks
| Feature | Value |
|---|---|
| Application | Specially designed for larger wall thicknesses which are more than 1. |
| Power Supply | 5.5kw |
| Working Frequency | 50hz |
| Flow Rate | 550 L/Min |
| Open Way | Manual / Remote Control |
| Net Weight | 230 kgs |
Consumables
| Model | Description | Angle | Length | Width | Drawing |
|---|---|---|---|---|---|
| GHDCT-1 | TheGAW Heavy Duty Cutting Tool (One Side) | 90 | 6" | 1" |  |
| GHDCT-2 | TheGAW Heavy Duty Cutting Tool (Two Side) | 90 | 6" | 1" |  |
| GHDCBT-01 | TheGAW Heavy Duty Cutting & Beveling Tool | 37.5 | 6" | 1" |  |
| GHDCBT-2 | TheGAW Heavy Duty Cutting & Beveling Tool- Two Side | 37.5 | 6" | 1" |  |
| GHDCBT-11 | TheGAW Heavy Duty Cutting & Beveling Tool | 30 | 6" | 1" |  |
| GHDCBT-12 | TheGAW Heavy Duty Cutting & Beveling Tool- Two Side | 30 | 6" | 1" |  |
| GHDCBT-105 | TheGAW Heavy Duty Compound Bevel Tool | 10X37.5 | 6" | 1" |  |
| GHDCBT-1010 | TheGAW Heavy Duty Compound Bevel Tool | 10X30.5 | 6" | 1" |  |
Notification
- Each unit comes in a package with a split frame, motor, tool boxes, striker, locking jaws, machine box, service tools, coolant holder, and one set of cutting blades.
- All sizes are supplied with a custom-built wooden box.
- Standard Cert Package including Drawings, Work Manual, and Warranty Certificate supplied along with the machine.
- Air-driven machines should be used with a filter lubricator and oil. Use without will void the warranty.
Warning
SAFETY NOTICE
Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
