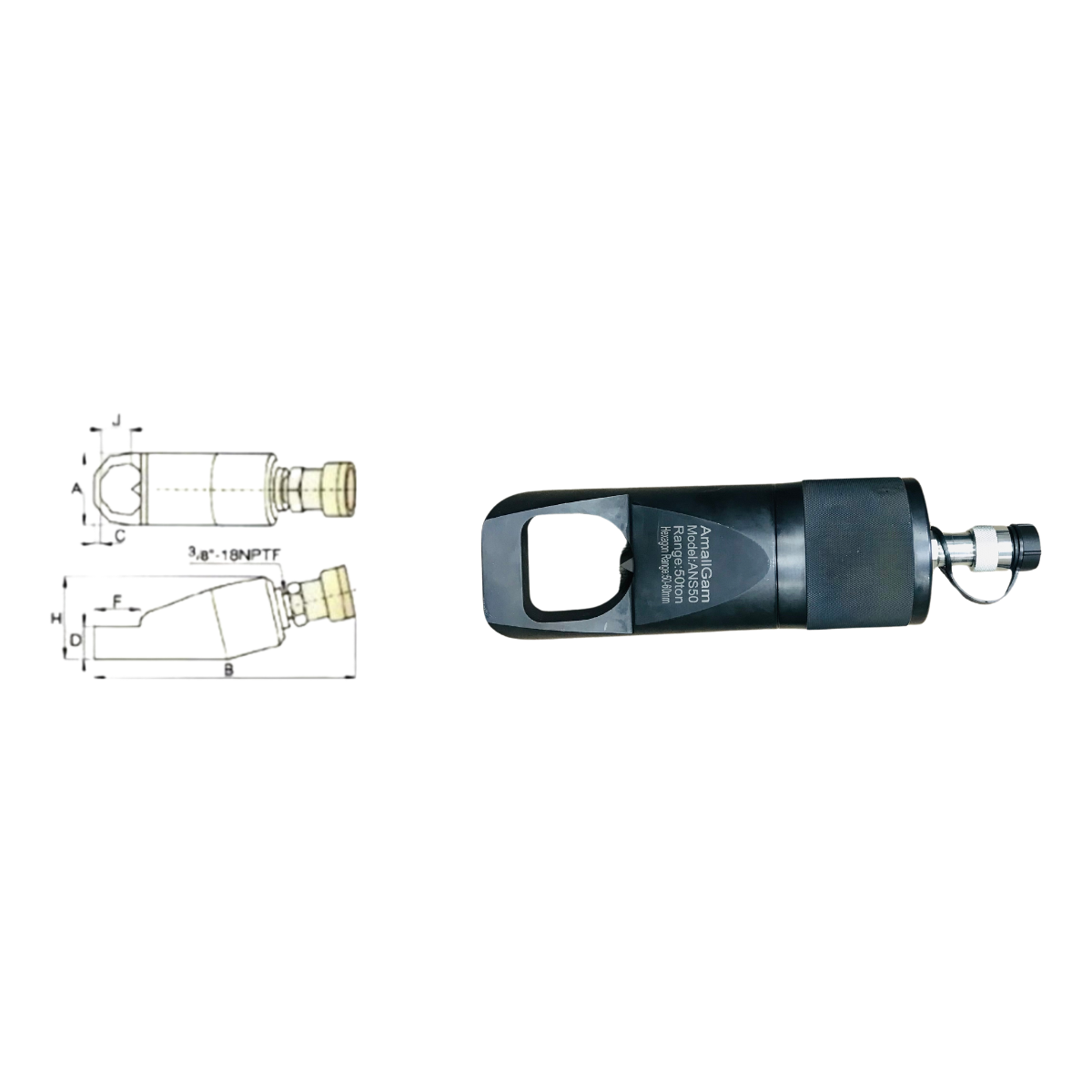

Nut Splitter

TheGAW Nut Splitters provide safe and efficient removal of heavily corroded or seized nuts through controlled hydraulic splitting action. The precision-engineered blade design with calibrated depth control ensures damage-free bolt preservation while eliminating sparks and impact hazards. Featuring quick setup and versatile sizing options, these tools deliver rapid nut removal in even the most challenging industrial environments.

Specifications

MODEL	BOLT RANGE (mm)	CAPACITY (ton)	HEX NUT RANGE (mm)	OIL CAPACITY (cm³)	WEIGHT (Kg)
ANS5	M6-M12	5	13-19	15	0.8
ANS10	M12-M16	10	19-24	20	2.5
ANS15	M16-M22	15	24-32	60	3.5
ANS20	M22-M27	20	32-41	80	4.5
ANS35	M27-M33	35	41-50	155	8.5
ANS50	M33-M39	50	50-60	240	12
ANS90	M39-M48	90	60-75	490	34.5
ANS100	M45-M64	100	70-95	375	38.5
ANS105	M45-M72	100	70-105	375	39.5
ANS200	M76-M90	200	110-130	820	72

Low Profile Link/Cassette Selection Chart

Powerpacks

Consumables

Features

Equipped with an RFID chip for easy identification, inventory management, and maintenance tracking.
Safe: No flames. No sparks. No risk to volatile surroundings. No hammers or impact are needed. No flying fragments.
Fast: Cuts a 3″ nut in 20 to 30 seconds, as opposed to approx. 20 minutes with a hammer & chisel or torch. No damage to bolt or stud threads by calibrating the chisel to cut only the nut.
Easy setup: You can be up and away in less than 5 minutes.
Versatile: Nut splitters cut the hardest nuts, and the range of models compares very favorably to the competition.
Price: A competitive price for the unit plus savings that reduce downtime and prevent damage to costly bolts and studs.

Benefits

Applications

Notification

Additional Acessories: Spare Chisel Quick Couplers, Hydraulic Hoses.
Standard Cert Package including Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with machine.

Warning

Using TheGAW™ Nut Splitters without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
