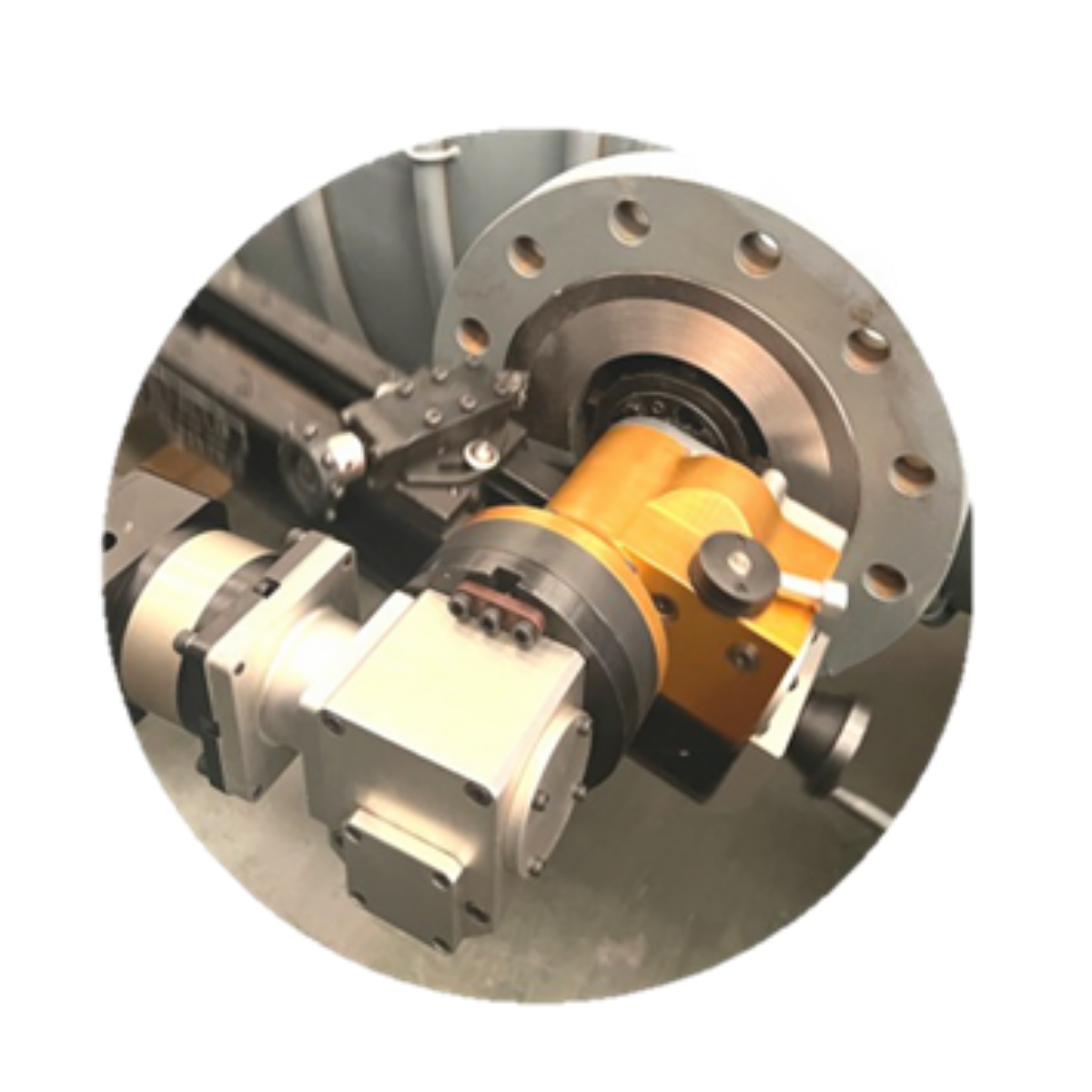

Manual Flange Facing Machine

TheGAW Manual Flange Machine is designed for efficient manual flange surface repairs by installing the tool on the inner wall of the flange using an internal clamping mechanism. It operates seamlessly in locations without power or gas supply, and its lightweight design simplifies operation, on-site installation, and disassembly, significantly lowering maintenance costs.

Specifications

Model	TGMFF-350
Inner Diameter (Machine Installation Range)	25-350 mm
Outer Diameter (Processing Range)	25-254 mm
Power	Manual
Radial Feed (Horizonal)	0.1 mm/r, 0.4 mm/r automatic
Axial Feed (Vertical)	Manual
Planeness (mm)	</ 0.1mm
Roughness (Ra)	Ra 3.2-6.3
Radial Feed Stroke	55 mm

Low Profile Link/Cassette Selection Chart

Powerpacks

Consumables

Features

Equipped with an RFID chip for streamlined asset management, real-time tracking, and maintenance history.
Operates without requiring electricity or gas.
Lightweight design crafted from high-strength materials ensures ease of handling and durability.
Adjustable tool holder with internal clamping mechanism accommodates flange diameters from 25 mm to 350 mm.
Precision centering supported by the inner flange wall guarantees flawless alignment.
Replaceable lead screw enables optimal feed rate, suitable for mirror-finish and water-grain line processing.

Benefits

Applications

Notification

Warning

Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
