Impact Sockets

TheGAW Impact Sockets are manufactured from high-strength chrome molybdenum steel, ensuring durability and performance under heavy impact loads. Designed for optimal strength and access in confined spaces, these sockets accommodate a wide range of fasteners, including standard, deep, and thin-wall variations. A comprehensive selection of sizes and accessories, including long length, bi-hexagonal, and specialized sockets, is available to meet diverse application needs.

Specifications

SQUARE DRIVE	MODEL	STANDARD TYPE-ACROSS FLATS(MM)	DEEP TYPE-ACROSS FLATS(MM)
3/4"	AST07	24mm, 27mm, 30mm, 32mm, 36mm, 41mm, 46mm, 50mm, 55mm, 60mm	27mm, 30mm, 32mm, 36mm, 41mm, 46mm, 50mm, 55mm, 60mm
	AST07X
1"	AST01	24mm, 27mm, 30mm, 32mm, 36mm, 41mm, 46mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm	41mm, 46mm, 50mm, 55mm
1-1/2"	AST15
1-1/2"	AST15X	36mm, 41mm, 46mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 130mm	41mm, 46mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm
	AST15Z
2-1/2"	AST25	80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm, 130mm, 135mm, 140mm	-
	AST25X
	AST25Y
	AST25Z

Low Profile Link/Cassette Selection Chart

Powerpacks

Consumables

Features

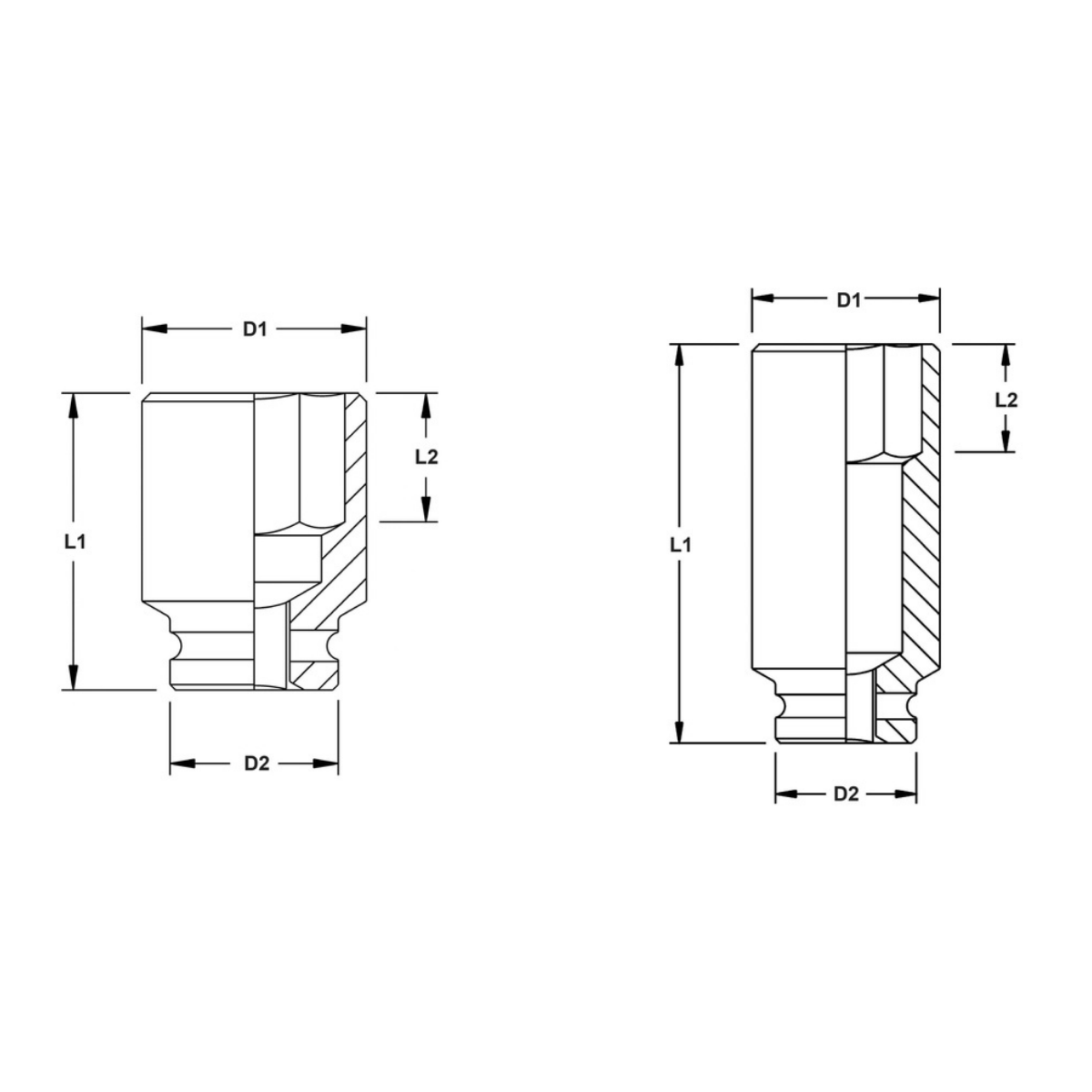

Standard, deep, and thin wall sockets.
The depth of the hex openings is designed to accommodate the full standard fastener head.
Up to 2 1/2″ square drive Impact Sockets through to 195mm (7.1/4″) across the flats.
Long length, bi-hexagonal and special sockets are available on request.
TheGAW Special Sockets include Magnetic socket & Smart Sockets with Bluetooth embedded.

Benefits

Applications

Notification

Additional Accessories: Adapter M-M, Adapter F-F, Adapter F-M, Extension Bar, Universal Joint, Retaining Pins & Rings.
Standard Cert Package including Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with the machine.

Warning

Using TheGAW™ Impact sockets without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
