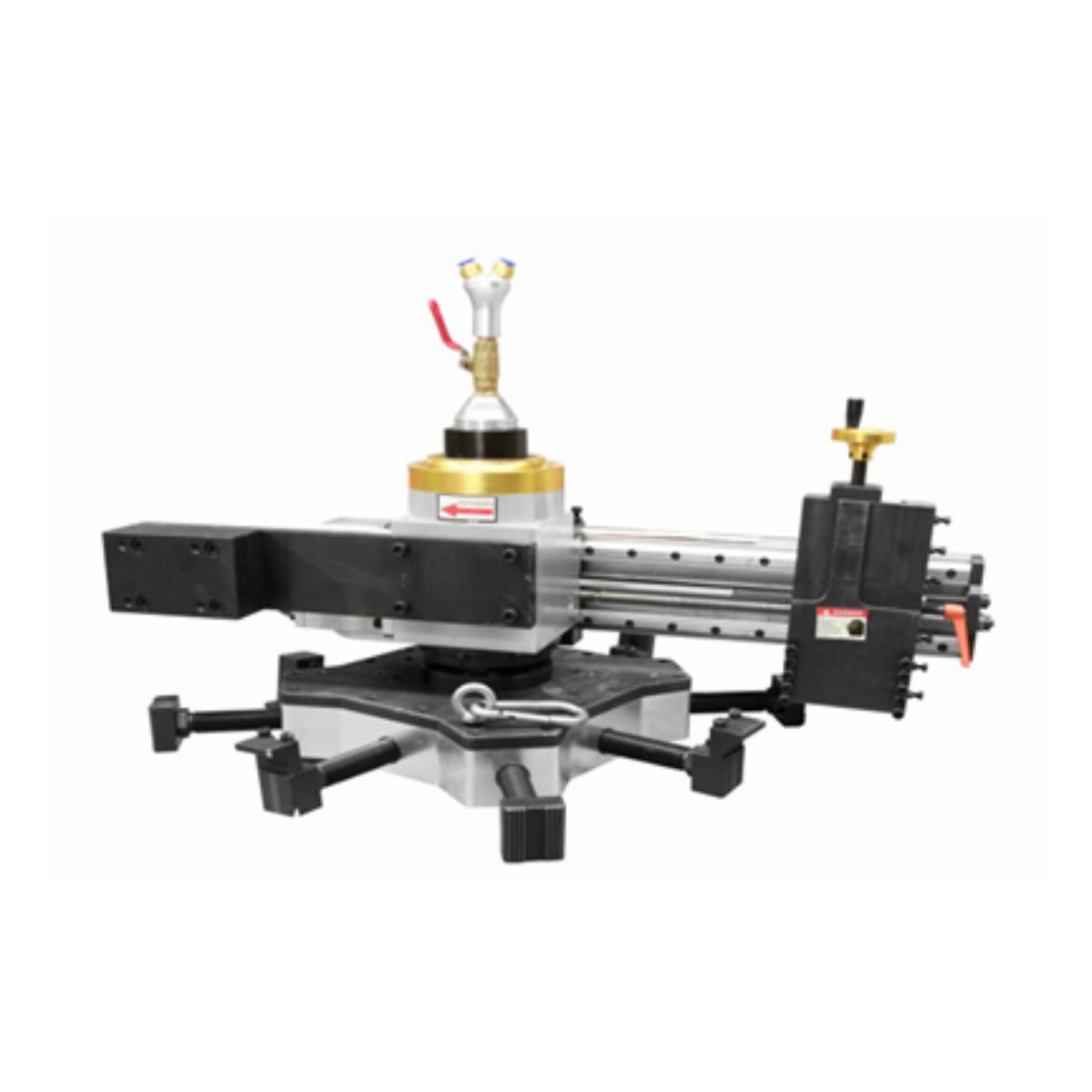

ID Mounted Flange Facing Machine

TheGAW ID Mounted Flange Facing Machine features a three-piece mounting system, making setup and alignment quick, simple, and hassle-free. This portable, lightweight, and powerful machine is ideal for facing, bevelling, and turning pipe, valve, and pump flanges with precision and ease. Designed with operator comfort and environmental concerns in mind, the machine operates quietly, significantly reducing noise pollution in the workplace.

Specifications

Model	Facing Range (O.D) Imperial	Facing Range (O.D) Metric	Mounting Range (I.D) Imperial	Mounting Range (I.D) Metric	Tool Stroke	Swivel Angle (Degrees)	Rotation Speed (RPM)
AFF20	2"-24"	50MM-610MM	2"-20"	50MM-508MM	50MM	±30	44RPM
AFF40	6"-40"	160MM-1000MM	6"-32"	158MM-820MM	102MM	±30	35RPM
AFF60	20"-66"	500MM-1650MM	20"-60"	500MM-1500MM	102MM	±30	23RPM
AFF80	27"-88"	690MM-2200MM	27"-80"	690MM-2000MM	102MM	±30	22RPM
AFF120	46"-120"	1150MM-3000MM	44"-112"	1120MM-2800MM	102MM	±30	15RPM

Low Profile Link/Cassette Selection Chart

Powerpacks

Consumables

Features

Equipped with an RFID chip for easy and real-time tracking, and maintenance history.
Easy installation and self-centering id mounted mechanical swelling.
Three axis servo feed system to process the complex end bevel.
Designed for bevelling and facing of heavy-duty pipes and flanges.
Powered with a swivel tool post for grooves, RTJ Flanges and bevels.
Safe, reliable and continuous groove-facing feeds.

Benefits

Applications

Notification

All sizes are supplied with a custom-built wooden box.
Available in Pneumatic and Hydraulic drives.
Each unit comes in a package with Machine, One set of blades, motor, tool boxes.
Standard Cert package including drawings, work manual and warranty certificate supplied along with machine.

Warning

Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
