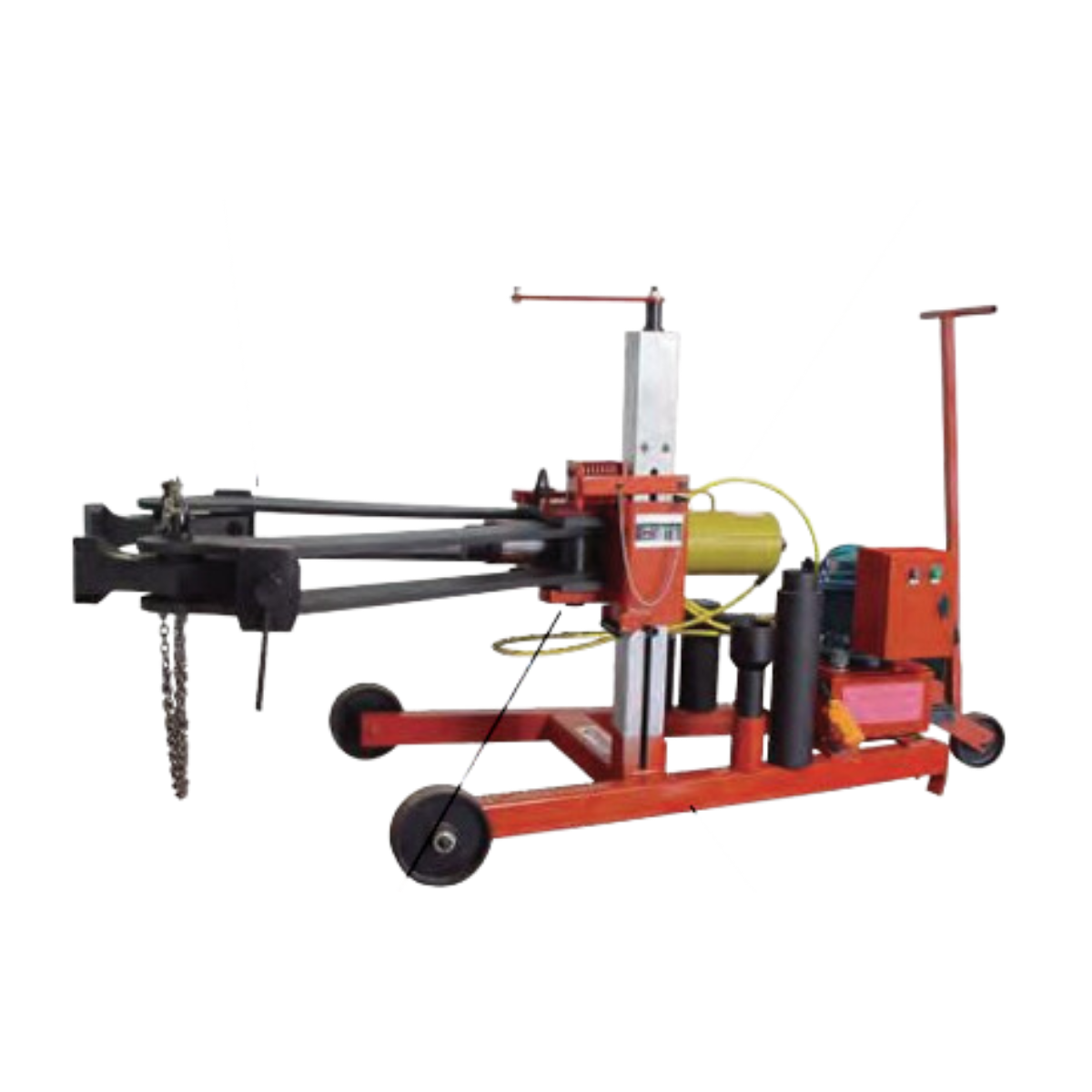

Hydraulic Pullers

TheGAW hydraulic pullers are designed for versatility and efficiency, offering a broad range of sizes, capacities, and styles to meet diverse needs. Constructed from high-strength forged steel alloys, they ensure dependable performance even in the most challenging environments. These pullers provide a safe and straightforward alternative to traditional methods, making them an essential tool for various applications.

Specifications

MODEL	HP50L	HP60L	HP100L	HP200L
CAPACITY	56	60	100	200
Min Open(mm)	64	140	120	381
PULLING DEPTH MIN(mm)	651	790	490	970
MAX OPEN(mm)	1150	1000	1150	1220
PULLING DEPTH MAX(mm)	559	650	340	806
OVERALL LENGTH	2590	2885	2610	3015
PULLER CENTER HEIGHT	450-1120	380-815	590-1155	478-915
CYLINDER STROKE(mm)	337	250	337	250
SOURCE OF POWER (sp)	220v/380v	220v/380v	220v/380v	220v/380v

Low Profile Link/Cassette Selection Chart

Powerpacks

Consumables

Features

Includes an RFID chip for efficient tracking, asset management, and service history monitoring.
Made of alloy steel with super high-strength; double-acting hydraulic design.
Used for dismantling large shafts and perforating workpieces.
Two jaws design and is easy to operate.
Roller cart makes it available to change workplace.
Fully automatic hydraulic design- automatic up and down, grip and pull.

Benefits

Applications

Notification

Additional Accessories: Hydraulic Hoses.
Standard Cert Package including Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with machine.

Warning

Using TheGAW™ Hydraulic Pulling machines without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
