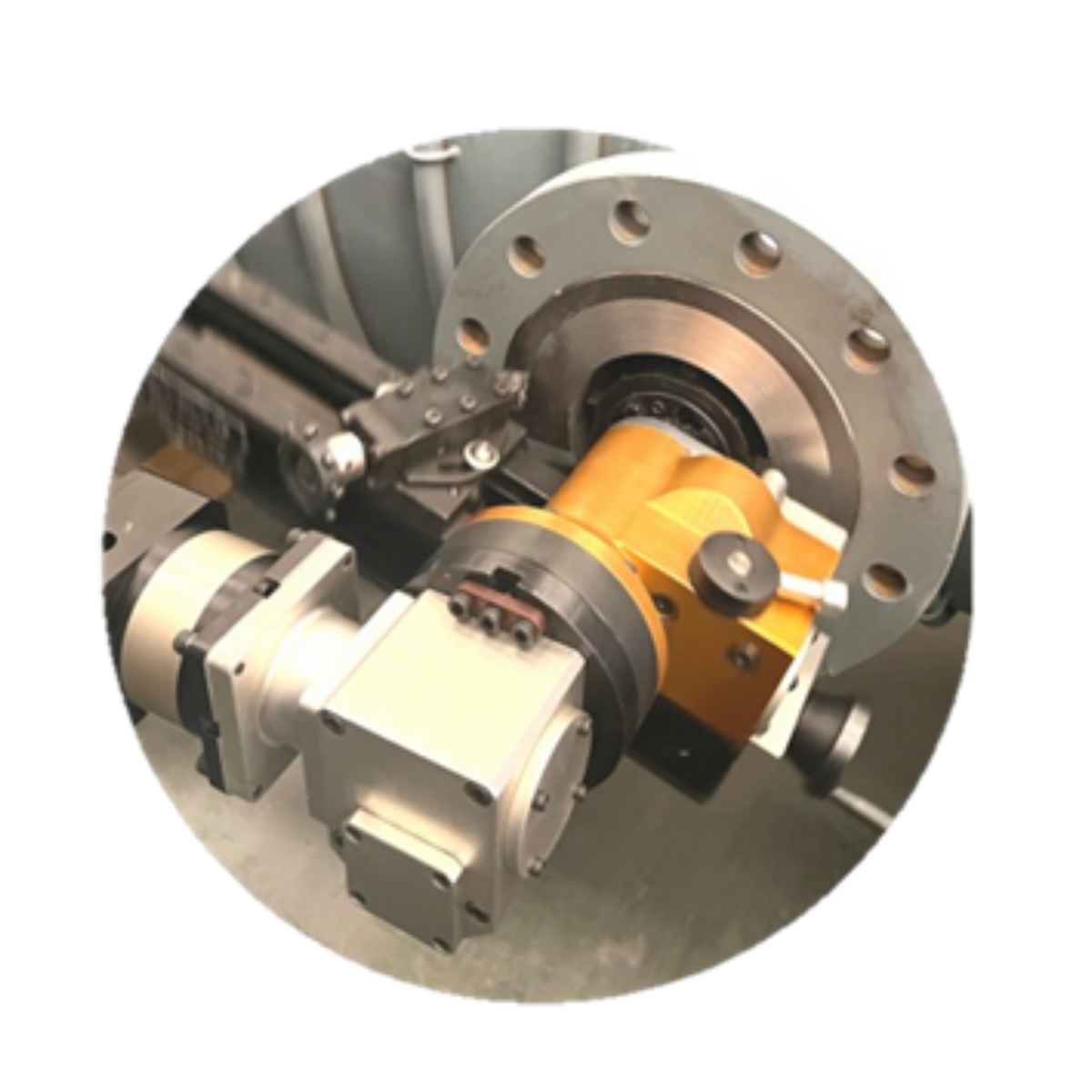

Manual Flange Facing Machine
TheGAW Manual Flange Machine is designed for efficient manual flange surface repairs by installing the tool on the inner wall of the flange using an internal clamping mechanism. It operates seamlessly in locations without power or gas supply, and its lightweight design simplifies operation, on-site installation, and disassembly, significantly lowering maintenance costs.
Specifications
| Model | TGMFF-350 |
|---|---|
| Inner Diameter (Machine Installation Range) | 25-350 mm |
| Outer Diameter (Processing Range) | 25-254 mm |
| Power | Manual |
| Radial Feed (Horizonal) | 0.1 mm/r, 0.4 mm/r automatic |
| Axial Feed (Vertical) | Manual |
| Planeness (mm) | </ 0.1mm |
| Roughness (Ra) | Ra 3.2-6.3 |
| Radial Feed Stroke | 55 mm |
Features
- Equipped with an RFID chip for streamlined asset management, real-time tracking, and maintenance history.
- Operates without requiring electricity or gas.
- Lightweight design crafted from high-strength materials ensures ease of handling and durability.
- Adjustable tool holder with internal clamping mechanism accommodates flange diameters from 25 mm to 350 mm.
- Precision centering supported by the inner flange wall guarantees flawless alignment.
- Replaceable lead screw enables optimal feed rate, suitable for mirror-finish and water-grain line processing.
Warning
SAFETY NOTICE
Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
