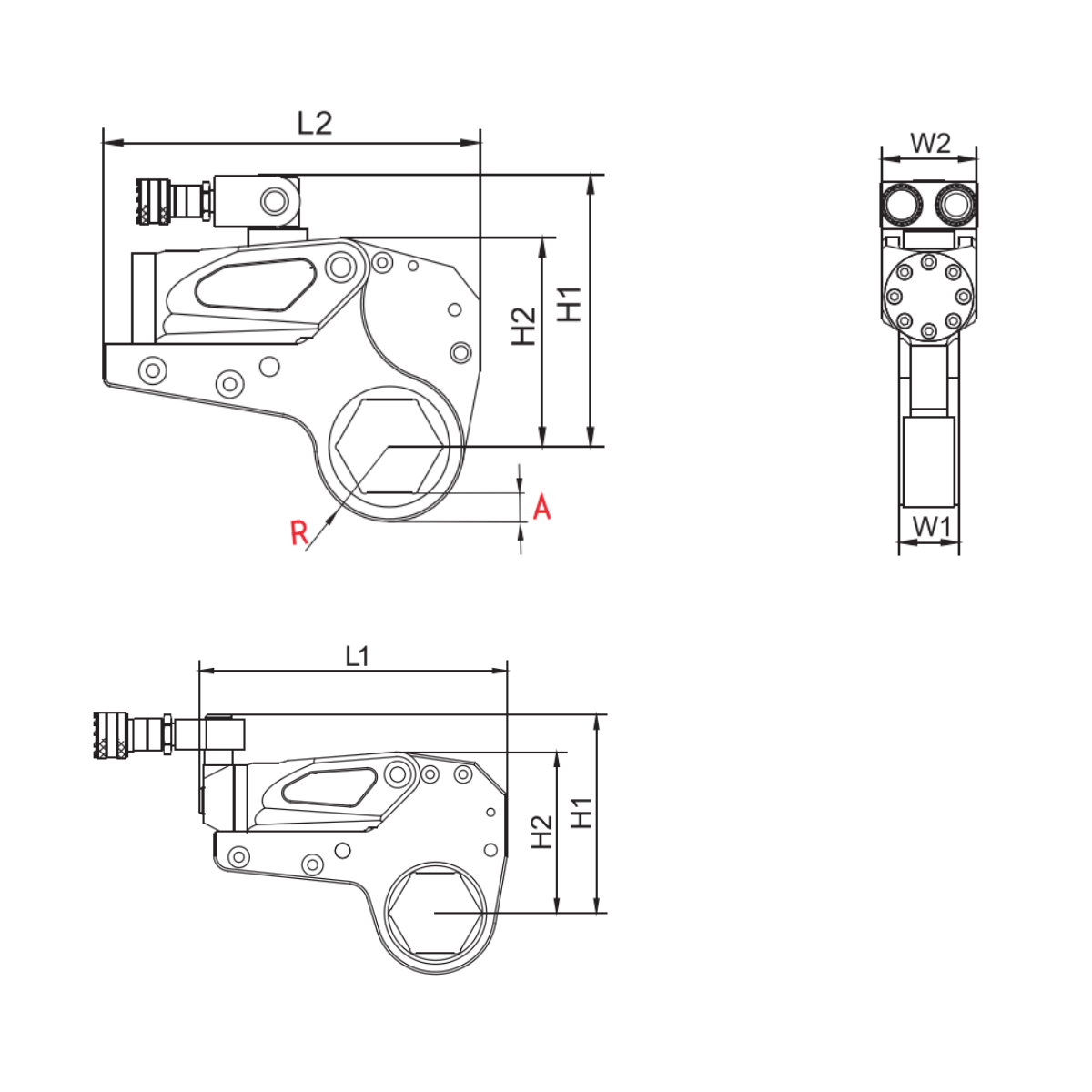

Low Profile Torque Wrench

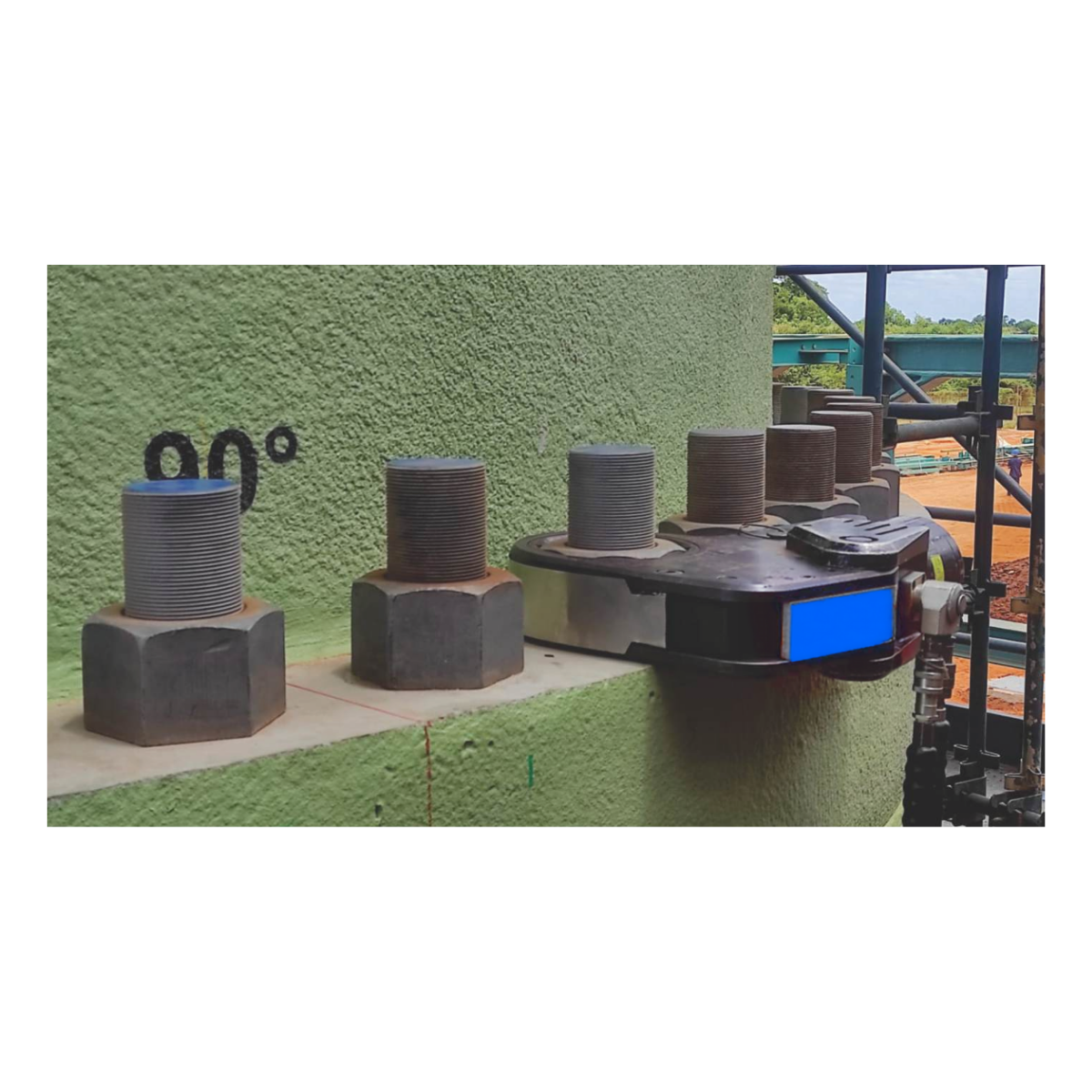

TheGAW Low-Profile Torque Wrenches combine exceptional durability with a lightweight and ergonomic design, minimizing operator effort and enhancing safety. Engineered to excel in confined spaces, these tools offer versatility and reliable performance, ensuring effortless access to challenging applications without compromising endurance or precision.
Specifications
| MODEL | ALT02 | ALT06 | ALT10 | ALT18 | ALT40 | ||||
|---|---|---|---|---|---|---|---|---|---|
| MIN.TORQUE(Nm) | 232 | 240 | 585 | 647 | 1094 | 1180 | 1850 | 4185 | 4460 |
| MAX.TORQUE(Nm) | 2328 | 2415 | 5858 | 6474 | 10940 | 11775 | 18520 | 41882 | 44595 |
| MIN.TORQUE(Ft.Lbs) | 171 | 177 | 431 | 475 | 807 | 870 | 1364 | 3086 | 3289 |
| MAX.TORQUE(Ft.Lbs) | 1717 | 1781 | 4321 | 4775 | 8069 | 8684 | 13659 | 30891 | 32891 |
| HEX SIZES(mm) | 19 - 55 | 60 | 46 - 65 | 70 - 85 | 41 - 95 | 100 - 105 | 50 - 117 | 85 - 155 | 160 - 175 |
| POWER HEAD WEIGHT(Kgs) | 1.5 | 1.5 | 2.5 | 2.5 | 3.5 | 3.5 | 6 | 11.5 | 11.5 |
| RATCHET WEIGHT(Kgs) | 1.8 | 1.9 | 4.6 | 4.8 | 8.2 | 8.6 | 11.8 | 29.2 | 30.2 |
LOW PROFILE LINK/CASSETTE SELECTION CHART
| ALT02 | ALT06 | ALT10 | ALT18 | ALT40 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | ACROSS FLAT | MAX TORQUE | MODEL | ACROSS FLAT | MAX TORQUE | MODEL | ACROSS FLAT | MAX TORQUE | MODEL | ACROSS FLAT | MAX TORQUE | MODEL | ACROSS FLAT | MAX TORQUE |
| ALT-02-19 | 19mm | 2330 | ALT-06-34 | 34mm | 2510 | ALT-10-41 | 41mm | 10940 | ALT-18-50 | 50mm | 18520 | ALT-40-85 | 85mm | 41885 |
| ALT-02-21 | 21mm | 2330 | ALT-06-36 | 36mm | 2510 | ALT-10-46 | 46mm | 10940 | ALT-18-55 | 55mm | 18520 | ALT-40-90 | 90mm | 41885 |
| ALT-02-22 | 22mm | 2330 | ALT-06-38 | 38mm | 5020 | ALT-10-49 | 49mm | 10940 | ALT-18-60 | 60mm | 18520 | ALT-40-95 | 95mm | 41885 |
| ALT-02-24 | 24mm | 2330 | ALT-06-41 | 41mm | 5860 | ALT-10-50 | 50mm | 10940 | ALT-18-65 | 65mm | 18520 | ALT-40-100 | 100mm | 41885 |
| ALT-02-27 | 27mm | 2330 | ALT-06-46 | 46mm | 5860 | ALT-10-55 | 55mm | 10940 | ALT-18-70 | 70mm | 18520 | ALT-40-105 | 105mm | 41885 |
| ALT-02-30 | 30mm | 2330 | ALT-06-49 | 49mm | 5860 | ALT-10-60 | 60mm | 10940 | ALT-18-75 | 75mm | 18520 | ALT-40-110 | 110mm | 41885 |
| ALT-02-32 | 32mm | 2330 | ALT-06-50 | 50mm | 5860 | ALT-10-65 | 65mm | 10940 | ALT-18-80 | 80mm | 18520 | ALT-40-115 | 115mm | 41885 |
| ALT-02-34 | 34mm | 2330 | ALT-06-55 | 55mm | 5860 | ALT-10-70 | 70mm | 10940 | ALT-18-85 | 85mm | 18520 | ALT-40-117 | 117mm | 41885 |
| ALT-02-35 | 35mm | 2330 | ALT-06-60 | 60mm | 5860 | ALT-10-75 | 75mm | 10940 | ALT-18-90 | 90mm | 18520 | ALT-40-120 | 120mm | 41885 |
| ALT-02-36 | 36mm | 2330 | ALT-06-65 | 65mm | 5860 | ALT-10-80 | 80mm | 10940 | ALT-18-95 | 95mm | 18520 | ALT-40-125 | 125mm | 41885 |
| ALT-02-38 | 38mm | 2330 | ALT-06-70 | 70mm | 6475 | ALT-10-85 | 85mm | 10940 | ALT-18-100 | 100mm | 18520 | ALT-40-130 | 130mm | 41885 |
| ALT-02-41 | 41mm | 2330 | ALT-06-75 | 75mm | 6475 | ALT-10-90 | 90mm | 10940 | ALT-18-105 | 105mm | 18520 | ALT-40-135 | 135mm | 41885 |
| ALT-02-46 | 46mm | 2330 | ALT-06-80 | 80mm | 6475 | ALT-10-95 | 95mm | 10940 | ALT-18-110 | 110mm | 18520 | ALT-40-140 | 140mm | 41885 |
| ALT-02-49 | 49mm | 2330 | ALT-06-85 | 85mm | 6475 | ALT-10-100 | 100mm | 11775 | ALT-18-115 | 115mm | 18520 | ALT-40-145 | 145mm | 41885 |
| ALT-02-50 | 50mm | 2330 | - | - | - | ALT-10-105 | 105mm | 11775 | ALT-18-117 | 117mm | 18520 | ALT-40-150 | 150mm | 41885 |
| ALT-02-55 | 55mm | 2330 | - | - | - | ALT-10-110 | 110mm | 11775 | ALT-18-120 | 120mm | 18520 | ALT-40-155 | 155mm | 41885 |
| ALT-02-60 | 60mm | 2415 | - | - | - | - | - | - | - | - | - | ALT-40-160 | 160mm | 44595 |
| ALT-02-65 | 65mm | 2415 | - | - | - | - | - | - | - | - | - | ALT-40-165 | 165mm | 44595 |
| - | - | - | - | - | - | - | - | - | - | - | - | ALT-40-170 | 170mm | 44595 |
| - | - | - | - | - | - | - | - | - | - | - | - | ALT-40-175 | 175mm | 44595 |
| - | - | - | - | - | - | - | - | - | - | - | - | ALT-40-180 | 180mm | 44595 |
Features
- Features an integrated RFID chip for efficient asset tracking and real-time data collection.
- 360° x 185° swivel or 360° x 360° swivel allows the wrench to operate with no space limitation.
- The piston rod of the torque wrench boasts hard chrome plating, enhancing wear resistance and ensuring long-lasting performance.
- The reaction pawl officially overcomes the possibility of ratchet reversing opposite; enhancing the efficiency and precision of torque.
- A compact design with a longer arm fully advances reliability.
- Operator Safety, Low Clearance, Interchangeable & Cross Compatible Design.
Notification
- Each unit comes in a carry case with identification tags on the case.
- Additional Accessories: Hex Reducers, Reaction Paddle, Extended Reaction Arm, Quick Couplers, Hydraulic Hoses.
- Standard Cert package including Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with the machine.
- Usage of TheGAW Hydraulic Torquing Pumps will provide greater efficiency on the torque tools.
Warning
SAFETY NOTICE
Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
