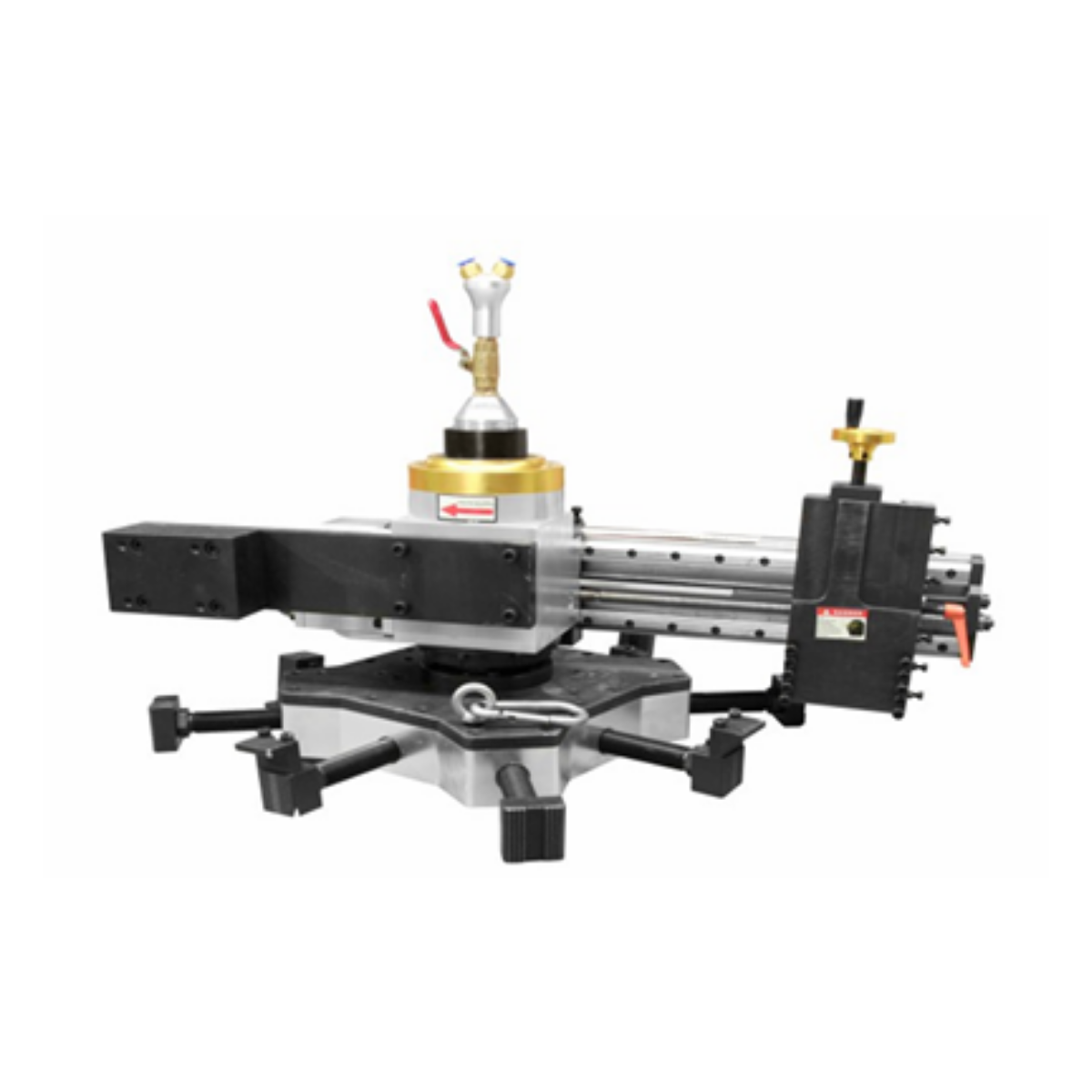

ID Mounted Flange Facing Machine
TheGAW ID Mounted Flange Facing Machine features a three-piece mounting system, making setup and alignment quick, simple, and hassle-free. This portable, lightweight, and powerful machine is ideal for facing, bevelling, and turning pipe, valve, and pump flanges with precision and ease. Designed with operator comfort and environmental concerns in mind, the machine operates quietly, significantly reducing noise pollution in the workplace.
Specifications
| Model | Facing Range (O.D) Imperial | Facing Range (O.D) Metric | Mounting Range (I.D) Imperial | Mounting Range (I.D) Metric | Tool Stroke | Swivel Angle (Degrees) | Rotation Speed (RPM) |
|---|---|---|---|---|---|---|---|
| AFF20 | 2"-24" | 50MM-610MM | 2"-20" | 50MM-508MM | 50MM | ±30 | 44RPM |
| AFF40 | 6"-40" | 160MM-1000MM | 6"-32" | 158MM-820MM | 102MM | ±30 | 35RPM |
| AFF60 | 20"-66" | 500MM-1650MM | 20"-60" | 500MM-1500MM | 102MM | ±30 | 23RPM |
| AFF80 | 27"-88" | 690MM-2200MM | 27"-80" | 690MM-2000MM | 102MM | ±360 | 22RPM |
| AFF120 | 46"-120" | 1150MM-3000MM | 44"-112" | 1120MM-2800MM | 102MM | ±360 | 15RPM |
Tailor-made sizes available upon customer request up to 180".
Features
- Equipped with an RFID chip for easy and real-time tracking, and maintenance history.
- Easy installation and self-centering id mounted mechanical swelling.
- Three axis servo feed system to process the complex end bevel.
- Designed for bevelling and facing of heavy-duty pipes and flanges.
- Powered with a swivel tool post for grooves, RTJ Flanges and bevels.
- Safe, reliable and continuous groove-facing feeds.
Notification
- All sizes are supplied with a custom-built wooden box.
- Available in Pneumatic and Hydraulic drives.
- Each unit comes in a package with Machine, One set of blades, motor, tool boxes.
- Standard Cert package including drawings, work manual and warranty certificate supplied along with machine.
Warning
SAFETY NOTICE
Using TheGAW™ Torquing tools without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
