Flange Spreader
TheGAW Flange Spreaders provide controlled separation of stubborn joints through precise hydraulic force application. The innovative stepped-wedge design enables access through minimal gaps while delivering powerful spreading capability. Featuring integrated safety blocks and controlled spreading action, these tools ensure damage-free flange separation for critical maintenance and inspection operations.
Specifications
| MODEL | CAPACITY | WEIGHT(Kgs) | REMARK |
|---|---|---|---|

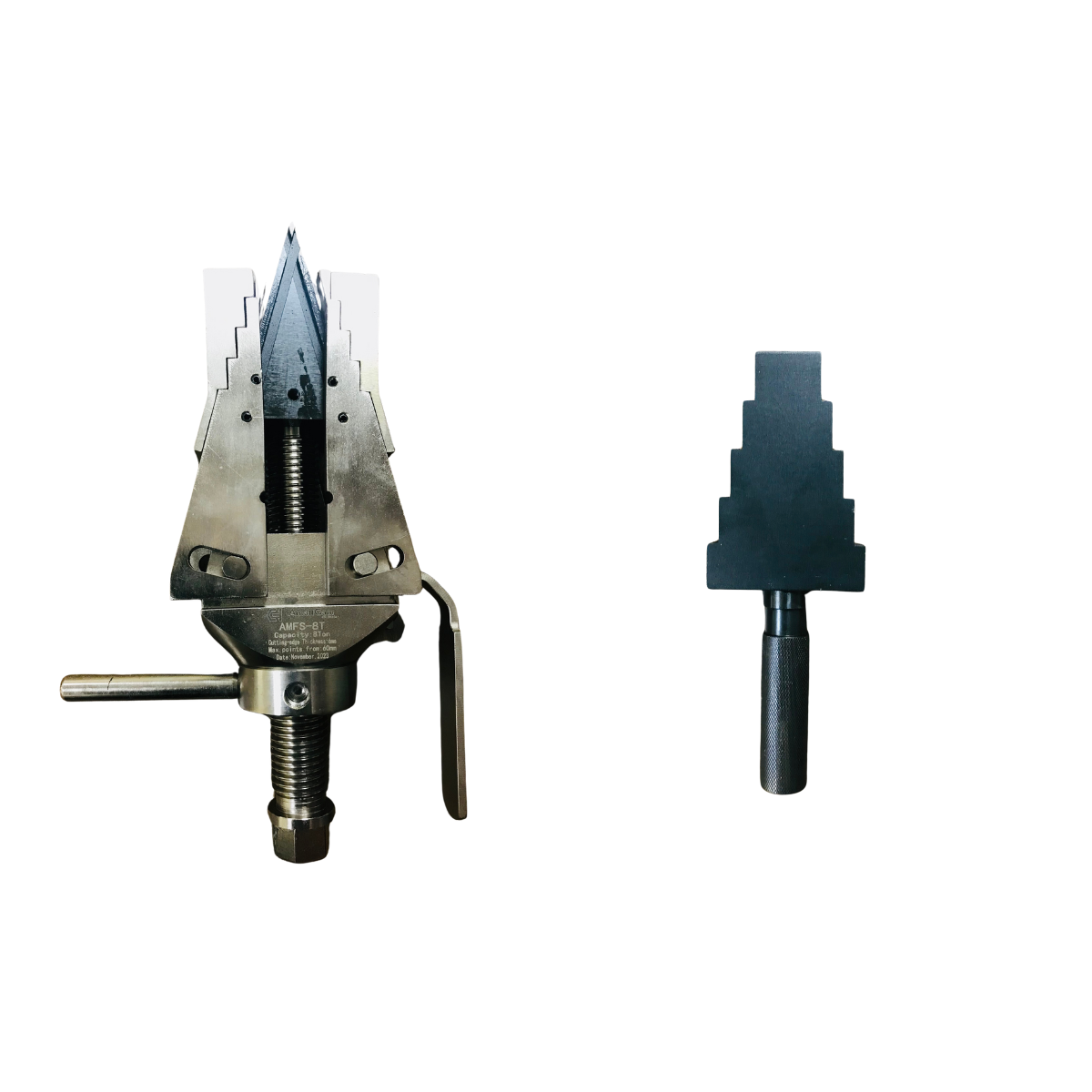

| AMFS-8T | 8T | 6 | 1 x Mechanical Flange Spreader, 2 x Stepped Blocks, 1 x Safety Block, 1 x Ratchets Spanner, 1 x Portable Toolbox |
| AMFS-16T | 16T | 12 | 2 x Mechanical Flange Spreaders, 4 x Stepped Blocks, 2 x Safety Blocks, 2 x Ratchet Spanners, 1 x Portable Toolbox |

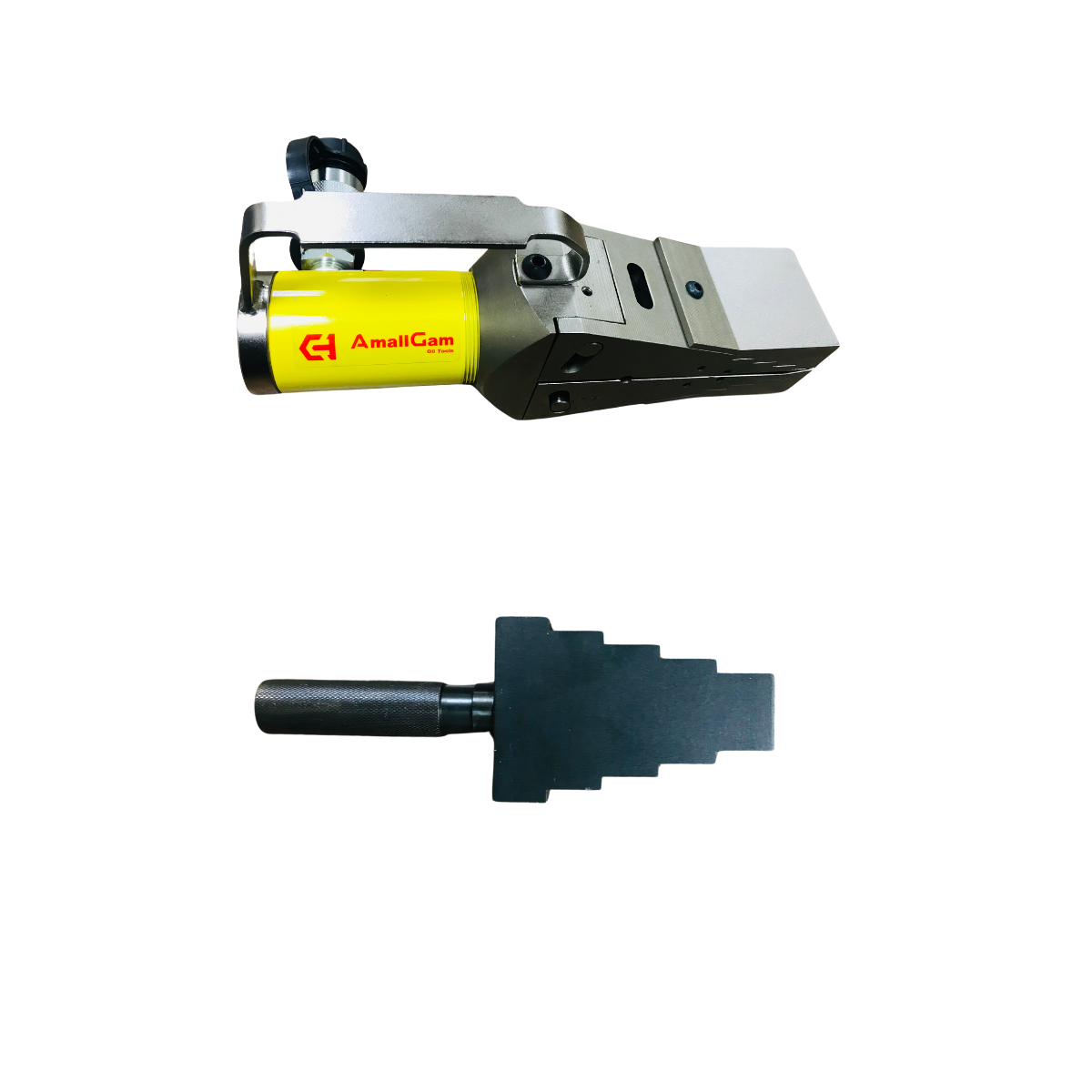

| AHFS-14T | 14T | 9 | 1 x Split Type Hydraulic Flange Spreader, 1 x Stepped Block, 1 x Safety Block, 1 x Hose, 1 x Hydraulic Hand Pump, 1 x Portable Toolbox |
| AHFS-28T | 28T | 18 | 2 x Split Type Hydraulic Flange Spreaders, 2 x Stepped Blocks, 2 x Safety Blocks, 3 x Hoses, 1 x Hydraulic Hand Pump, 1 x One-to-two Distribution Valve, 1 x Portable Toolbox |
Features
- The RFID chip ensures improved asset traceability, simplifying maintenance and operational monitoring.
- Forged alloy steel separation steps for longer life.
- Lightweight, reinforced plastic steel handle design, easy to carry.
- The unique internal locking mechanism ensures that the separation piece is close to the flange when it is opened and will not expand too much, and the oil cylinder automatically returns when it is closed.

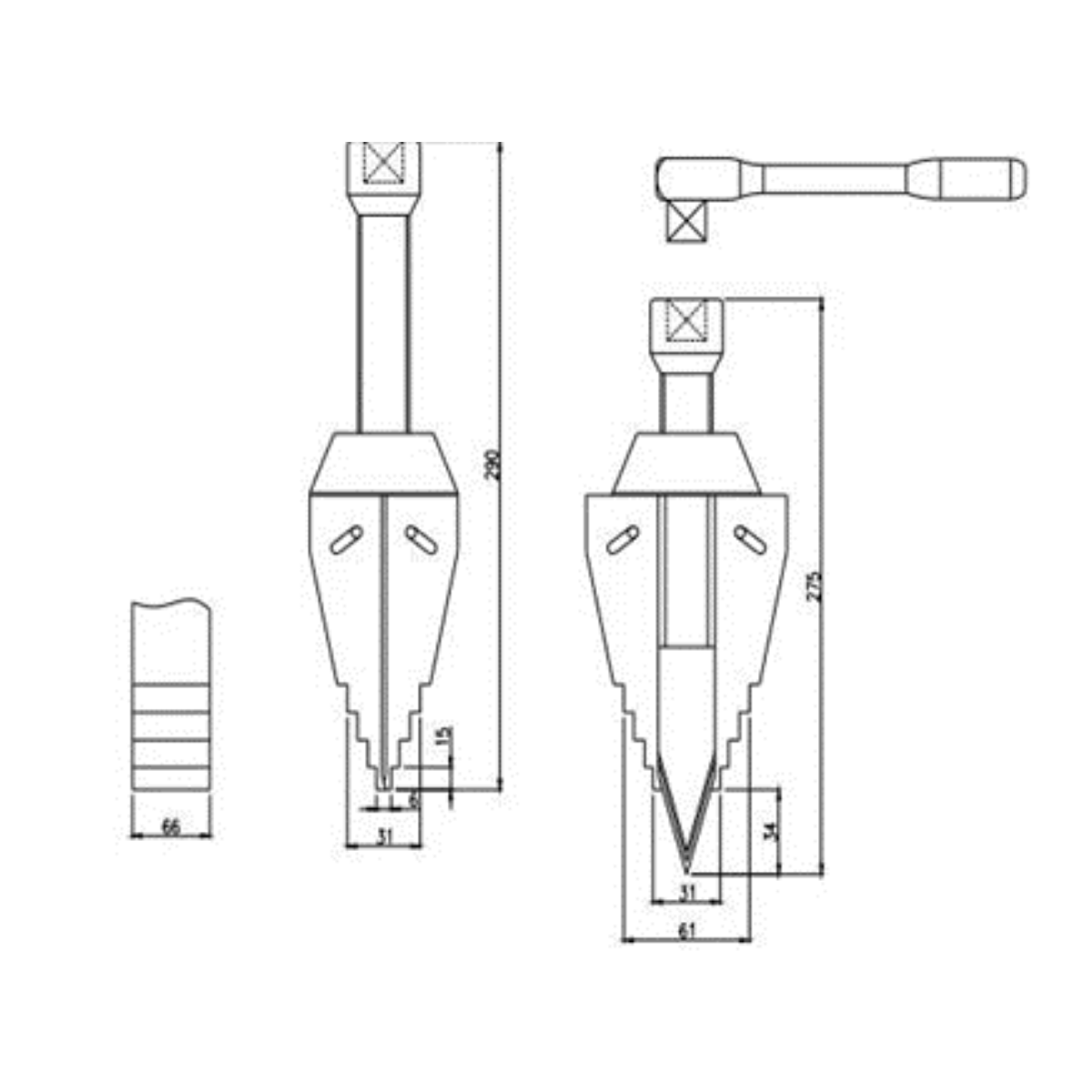

- Arc steps with a radius of 150mm can effectively get close to the flange so that each step can bear a larger load.
- Mechanical automatic retraction design, saving time and efficiency.
- The large step distance is 15mm, providing the first-order large-area separation force.
- The separator is close to the flange surface during operation, and the unique design ensures that there is no excessive expansion.
Notification
- Each unit comes in a carry case.
- Additional Accessories: Hand Pump, Pressure Gauge, Quick Couplers, Hydraulic Hoses.
- Standard Cert Package including Technical Datasheet, Operational Manual, Maintenance Manual, and Manufacturing Test Report are supplied along with machine.
Warning
SAFETY NOTICE
Using TheGAW™ Flange Spreaders without proper precautions can lead to severe injuries. Follow the provided operational guidelines and industry safety standards. Regular maintenance and inspection of the machines are essential to ensure safe and efficient performance.
